Product Description
PHF3672C

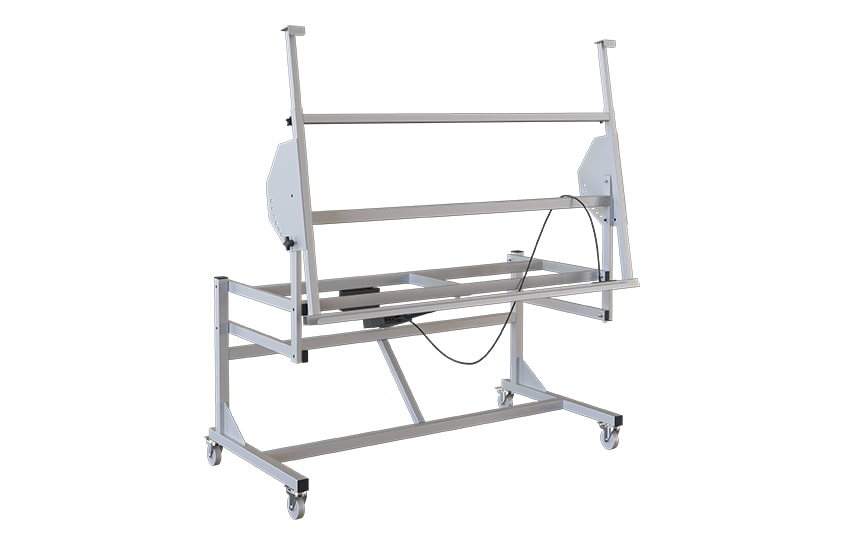

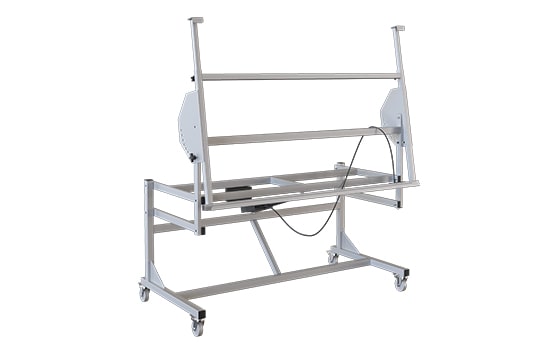

Specialty Frame - Wire Harness Board with Casters

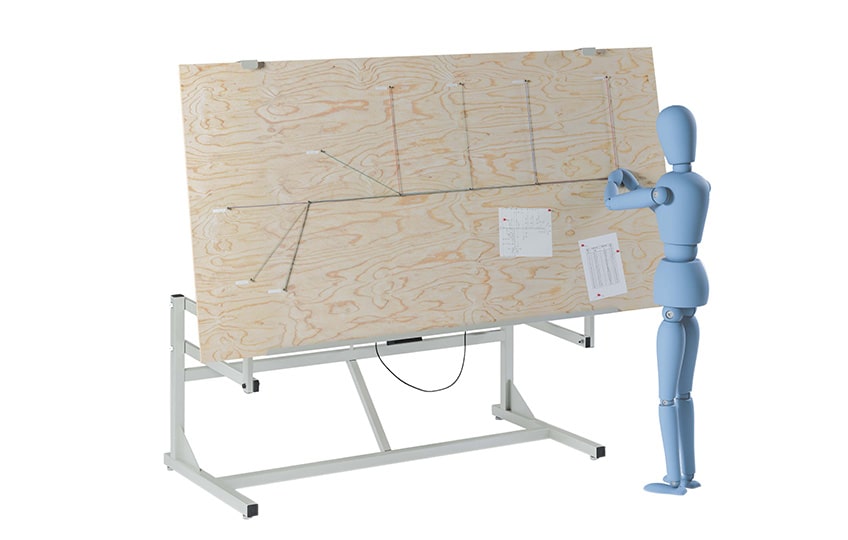

Wire harness board workstation is the result of three years of cooperative development with several major wire harness fabricators. The electric height adjustable and manual tilt mechanisms provide a more ergonomic work environment increasing productivity. Frame allows operator to properly set a large wire harness board quickly, then change position without removing work in process. Frame may be raised or lowered at the touch of a button so operator can work comfortably sitting or standing. Deck adjusts easily from horizontal to vertical position as well as multiple tilting options. Horizontal setting provides operator access to the board from all sides.
FEATURES:
- Space-saving compact footprint, 36” d x 72” w. Deck is 36” d x 72” w, expands to 48” d x 72” w. Supports boards up to 48” d x 96” w
- Multiple frames can work together to support extra long boards
- 36" to 70" horizontal position height range. 11" to 46" vertical position height range. Manual tilt 0° to 90° in 10-degree stops
- Programmable switch provides digital height read-out and preset adjustability
- Self-contained linear actuator with integral limit switch, 12 VDC low voltage control

DISCLAIMER : Product specifications and availability may change without notice.
