Product Description
PHF3672

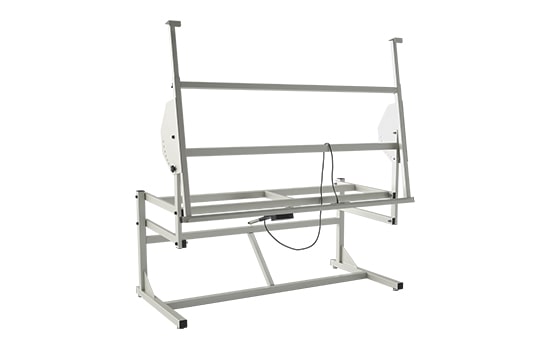

Specialty Frame - Wire Harness Board with Feet









Wire harness board workbench offers electric height adjustable and manual tilt mechanisms. Frame allows operator to properly set a large wire harness board quickly, then change position without removing work in process. Frame may be raised or lowered at the touch of a button so operator can work comfortably sitting or standing. Deck adjusts easily from horizontal to vertical position as well as multiple tilting options. Horizontal setting provides operator access to the board from all sides. Space-saving compact footprint, 36” d x 72” w. Deck is 36” d x 72” w, expands to 48” d x 72” w. Supports boards up to 48” d x 96” w. 36" to 70" horizontal position height range. 11" to 46" vertical position height range. Manual tilt 0° to 90° in 10-degree stops.
FEATURES:
- Multiple frames can work together to support extra long boards
- Programmable switch provides digital height read-out and preset adjustability
- Self-contained linear actuator with integral limit switch, 12 VDC low voltage control
- Lag plates available.
WIDTH
72
DEPTH
36
CAPACITY
350 lbs*
ADDITIONAL INFORMATION
*Based on evenly distributed loads

DISCLAIMER : Product specifications and availability may change without notice.
