ESD Workbenches: A Complete Guide

What Is an ESD Workbench?

An ESD (Electrostatic Discharge) workbench is specifically designed to prevent static electricity build-up, which can damage sensitive electronic components. This guide will provide an overview and offer practical tips for optimizing your workspace to enhance safety and productivity.

How ESD Workbenches Prevent Damage

ESD workbenches maintain a static-free environment by using conductive surfaces and grounding systems to protect against electrostatic damage. This ensures safety and functionality when working with sensitive electronic devices.

Common Industries

Industries such as electronics manufacturing, aerospace, and semiconductor manufacturing rely on ESD workbenches to meet strict ANSI/ESD standards. These benches are crucial in environments where static electricity can cause significant damage to components.

ESD workstation in a laboratory

Choosing the Right ESD Workbench

Workbenches come in various designs, each with its own set of features and benefits. Below are several key factors to consider when choosing the right workbench.

turntable ESD workbench

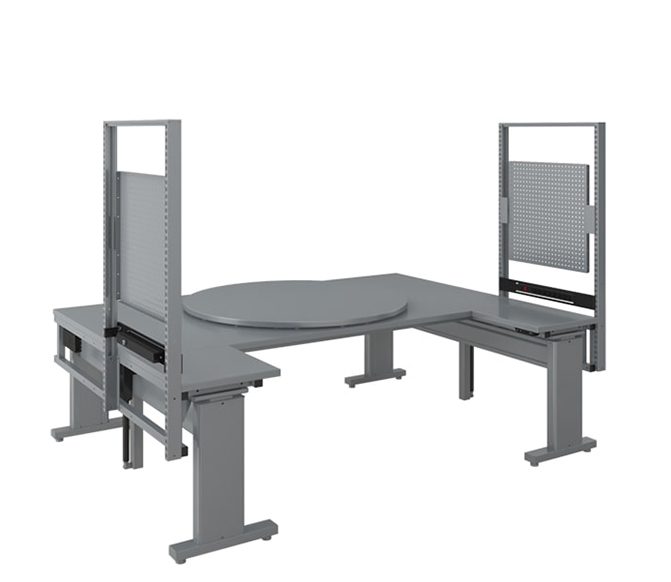

This custom workbench for an electric vehicle manufacturer features synchronized electric height-adjustable frames and a 51” ESD-compliant turntable, enhancing operational efficiency and ergonomic safety while handling heavy components.



Key Factors to Consider

  • Height Adjustability: Manual height adjustable workstations are a good choice when only one employee works on the station and/or the height doesn’t need to be changed more than twice a year. Electric height adjustable workbenches are ideal for multiple-shift applications or work processes that sit-stand height adjustments.
  • Size and Capacity: Workbench should provide enough work surface for the operator to perform tasks comfortably and efficiently. Depending on the weight of materials and equipment used, choose between medium-duty workbenches, which support up to 500 lbs, and heavy-duty models, capable of handling up to 1200 lbs.
  • Access Requirement: Cantilevered workbenches are designed for single-sided access and offer ample leg room for operator comfort. Center-justified are great for tasks requiring access to both sides of the workstation. For applications which need 360-degree access, a custom workbench is the solution. Here is an example:
  • Budgetary Consideration: In terms of budget friendliness, four-post workbenches stand out as robust, versatile, and cost-effective solutions well suited for various industrial applications.

Key Components

  • Worksurface: Typically made from ESD laminates or coated with static-dissipative finishes, these surfaces maintain ideal resistance levels (recommended resistance of point-to point (Rtt) and point to ground (Rtg) of 1.0x 106 to less than 1.0×109 ohms (ANSI/ESD S4.1)) to prevent static buildup and discharge.
  • Grounding Points: Essential for linking the workbench and its accessories to a grounding mechanism, maintaining a zero-potential environment.
  • Ergonomic and ESD-Safe Accessories: Wrist strap connectors from work surface, ESD casters with polyolefin core and conductive rubber tread, drawers and shelves made from or lined with ESD-safe materials, and benchtop ionizers cater to various manufacturing and assembly needs, ensuring both compliance and efficiency.

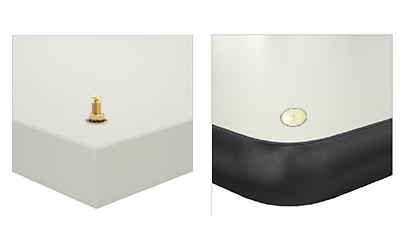

Different types of ESD work surfaces

Selecting and Arranging Workbench Accessories

ESD Workbench with Tools and Accessories Labeled

Selecting the right accessories for your workbench is crucial for maximizing functionality and improving operator efficiency. After the basic setup, choose accessories based on usage frequency, safety, and ergonomic considerations.

Use our 3D online configurator to easily customize your workbench to meet your specific requirements.

Cleaning, Maintenance, and Safety

Regular cleaning and maintenance are essential to preserve ESD protection and extend the life of workbench components.

ESD Cleaning Guidelines

Use ESD-specific cleaners to avoid static buildup. Soft cloths or non-abrasive wipes should be used to prevent damage and maintain the workbench’s integrity.

Key Areas to Clean

Focus on cleaning high-contact areas like workbench surfaces, handles, buttons, and other accessories regularly to prevent grime accumulation that can impair ESD properties.

Training and Awareness

It’s important to educate employees on the importance of ESD protection and proper cleaning techniques. Training ensures staff understand the risks and adopt best practices to prevent accidental damage to electronic components.

For more detailed information on care and maintenance practices, visit our Care and Maintenance page.

Safety and Compliance

ANSI/ESD S20.20: These guidelines set the requirements for an ESD Control Program, ensuring electronic parts are protected against ESD damage. For detailed compliance requirements, refer to the ANSI/ESD S20.20 guidelines.

Workstation Maintenance and Care
Lab Work Surface

Ensuring Your Workstation is Static-Free

Ergonomics
Best Practices
  • Ensure Proper Grounding: Ensure all components, including the workbench itself, are correctly grounded. Utilize grounding cords and mats to provide a continuous path to ground.
  • Use ESD-Safe Tools and Accessories: Equip your workstation with ESD-safe tools and accessories. Regularly check and maintain these items to preserve their anti-static properties.
  • Utilize a Controlled Environment: Keep environmental conditions conducive to minimizing static buildup and aim for 40-60% relative humidity. This level will help reduce static charge generation and accumulation.
Standardization
Other Considerations
  • ESD Mats: Utilize ESD mats on both the work surface and the floor around the workstation to safely dissipate static charges.
  • ESD Clothing: Wearing ESD-protective clothing, including jackets, gloves, and wrist straps, is crucial for preventing static buildup on the body of the operator.
  • ESD Chairs: These chairs are designed with materials that prevent static accumulation and include grounding mechanisms for effective dissipation.
  • ESD Casters: ESD casters on chairs and mobile equipment help maintain a static-free environment by providing an additional pathway for static discharge.

Ergonomic Planning

Proper ergonomic planning ensures that workstations are designed to maximize operator comfort and efficiency.

Ergonomic zones

Review ergonomic reach zones to determine what tools and components are needed within each zone. For example, utilizing uprights with shelves and bin rails can help operators place items efficiently and keep the work surface organized.

Understanding ESD workbenches is crucial for protecting sensitive electronics and enhancing workplace efficiency. Implement the strategies outlined in this guide to improve safety and productivity.
